Scope of Services
engineering services
We provided engineering services in equipment installation
Laying and installing of High purity Gas line/chemical line (Stainless steel 316L EP/316 BA/304 etc).
Laying and installing of Stainless Steel schedule pipe for CDA; PCW; Chilled water pipe etc.
Laying and installing of High purity PFA tubing with Stainless steel or PVC outer containment for chemicals distribution.
Life safety system (LSS) sampling tubing; shutdown cables installation and cause & effect programing
Laying and installing of SS304 tubing for HiVac line
Laying and installation of Polypropylene (PP), UPVC, CPVC, PVDF piping
Installation of Polypropylene/ stainless steel exhaust duct
Setting up of online monitoring system (SCADA)
Design / Fabrication / installation / commissioning of Electrical distribution board / Instrumentation control panels (I/O panel; heat trace panel; PLC base control panel; relays control circuit panel etc)
We provide solution in retrofitting/ refurbishment of piping system, valve manifold in equipment.
Engineering equipment installation
Expert engineering support for efficient and reliable equipment setup
Supply of ...
- Supply of SemiS2 certified specialty gas distribution system
- Supply of made to order chemical distribution system such as chemical dispense module , VMB and TeeBox
- Supply of made to order gas distribution system such as gas cabinet; gas panel; VMB;VMP
- Supply of made to order chemical daytank.
- Supply of made to order chemical waste collection tanks.
- Supply of made to order electrical distribution board( DB)
- Supply of made to order instrumentation control panel.
GAS DISTRIBUTION SYSTEM
GAS CABINET
- Enclosure exhausted
- Dual Cylinder automated switch over via pressure or weight
- 5 Valve fully automated configuration comes with automated Purge sequence.
- Password protected access for each level
- Manifold design comes with safety features such as excess Flow switch; fire sprinkler etc
- Comes with digital output to monitor gas system alarm.
- Able to trend gas supply and delivery pressure locally and remotely via the SCADA system.
- Software and Hard wire option for Life safety interlock to shutdown system in the event of gas leak.
GAS DISTRIBUTION SYSTEM
GAS PANEL
- Dual Cylinder automated switch over via pressure or weight
- 5 or 3 Valve fully automated / manual configuration
- Manifold design comes with safety features such as excess flow switch (optional)
- Comes with digital output to monitor gas system alarm.
- Able to trend gas supply and delivery pressure locally and remotely via the SCADA system.
- Software and Hard wire option for Life safety interlock to shutdown system in the event of gas leak.
GAS DISTRIBUTION SYSTEM
Valve Manifold Panel
- Enclosure exhausted
- Comes in 4 stick; 8 stick configuration.
- Option to be fully automated or semi automated
- Comes with venturi and purge gas for each stick
- Comes with pressure transducer to monitor gas pressure.
- Comes with digital output to monitor gas system alarm.
- Able to trend gas supply and delivery pressure locally and remotely via the SCADA system.
- Software and Hard wire option for Life safety interlock to shutdown VMB or individual gas stick in the event of gas leak.
GAS DISTRIBUTION SYSTEM
Valve Manifold Panel
- Comes in 4 stick; 8 stick configuration.
- Option to be fully automated or semi automated or fully manual
- Comes with venturi and purge gas for each stick
- Comes with pressure transducer / pressure gauge to monitor gas pressure.
- Comes with/without digital output to monitor gas system alarm.
- Able to trend gas supply and delivery pressure locally and remotely via the SCADA system (PLC Base)
Gas and Chemical Piping Work
- Available in 4-stick or 8-stick configurations.
- Options for fully automated, semi-automated, or manual operation.
- Each stick includes a dedicated venturi and purge gas setup for safe and efficient operation.
- Equipped with pressure transducers and pressure gauges for real-time pressure monitoring.
- Available with or without a PLC-based controller.
- Optional digital output interface for gas alarm monitoring.
- Capable of local and remote pressure trend monitoring through SCADA integration (PLC-based).
CHEMICAL
DISTRIBUTION SYSTEM

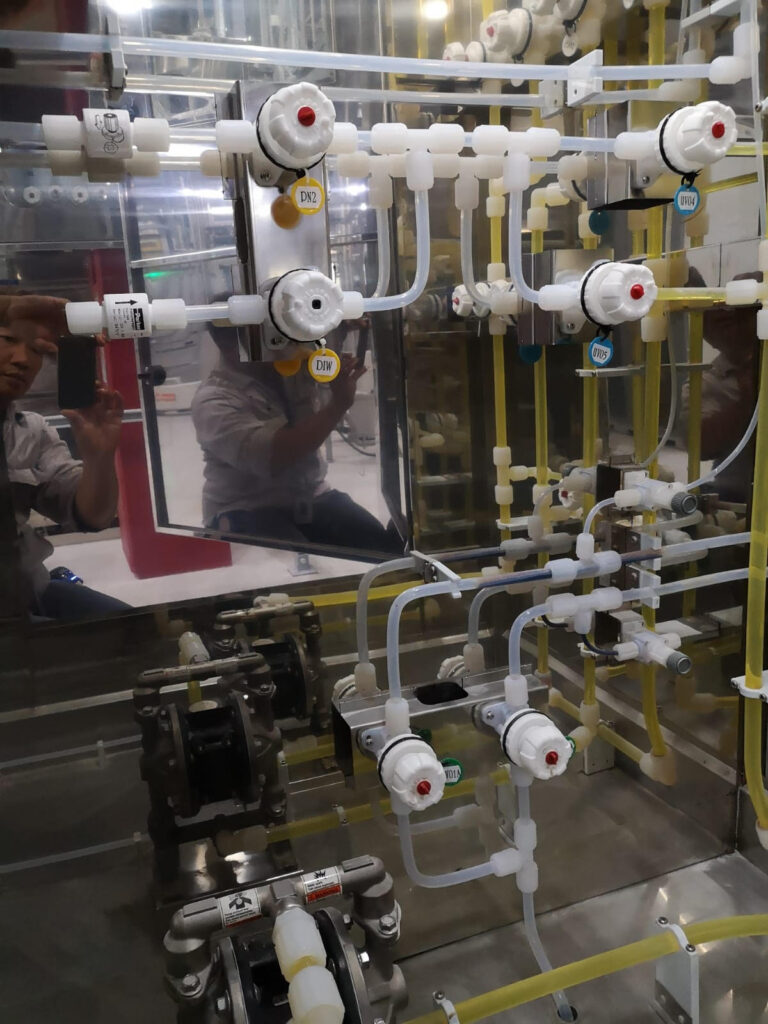

Chemical Dispense Module
- Fully customize to end user requirement.
- PP enclosure for corrosive chemical. Stainless steel enclosure for flammable chemical.
- PFA valves and plumbing flow path
- Diaphragm pump operated Exhausted enclosure
- Comes with safety features such as leak sensor; UV/IR; CO2 fire suppression system.
- Fully PLC base automated process.
- Modbus communication protocol for data concertation to SCADA for monitoring.
PROGRAMMING WORKS
GAS MONITORING SYSTEM
GMS LIFE SAFETY SYSTEM SETUP
- Fully customize monitoring system to suit end user requirement.
- Option of full parameter monitoring or monitoring of contacts.
- Option of Web-base or dedicated programmable SCADA platform.
- Supply and Setting up Life Safety System I/O panel and cause/effect program in Safely shutting down of gas system and evacuating of employees in the Event of gas leak.
- Setting up and placement of Life safety system evacuation revolving light And buzzer in evacuating employee in the event of gas leak.
Heat Trace panel & Tape / Heater jacket panel & jacket
- Heat trace panel and heat trace tape for low vapor pressure Gases.
- Heater jacket panel and heater jacket for HiVac discharge.
- Panel Option for monitoring of heat trace/jacket temperature via SCADA.
